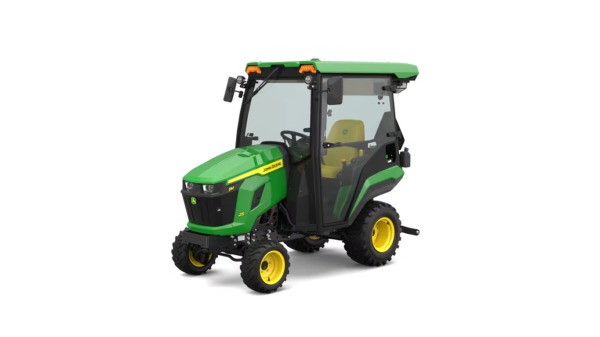

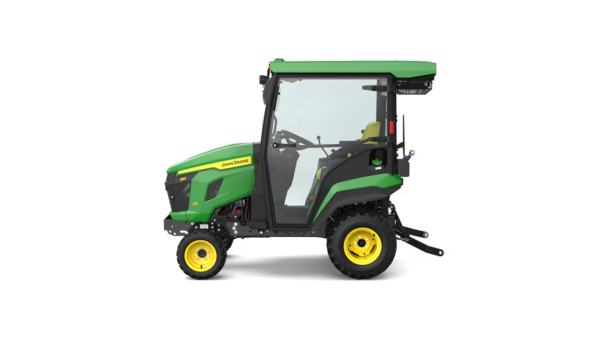

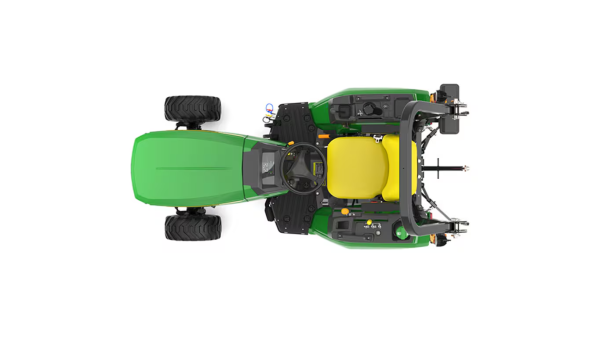

John Deere 1M 25 Sub-Compact Tractor
| Make | John Deere |
| Model | 1M 25 |
| Type | 1-Family Compact Tractors |
Your Preferred Location
Description
- Optional Factory-Installed All-Weather HVAC Cab
- One-Piece Hood Design for Easier Maintenance
- Ergonomic Controls, Tilt Steering, and Marine-Grade Vinyl Seat With Deluxe Suspension System for Enhanced Comfort
- 12-V Outlet, USB Port, Tilt Steering Wheel, and Toolbox
Models
More Time Working, Less Time Switching Implements
John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.
Convenient Twin Touch™ Foot Controls
Twin Touch™ foot controls let operators change speed and direction with a touch of the toe, making loader and mower work faster and easier. Benefits include infinite ground speeds, no clutching for quick reversals, strong startup torque, and reduced drivetrain shock.
Equipment Mobile and Smart Connector
Equipment Mobile helps you set up, operate, and maintain your tractors from one app. With a John Deere Smart Connector, you can see live tractor data, get DTC alerts, track maintenance, scan the PIN for manuals and parts, and manage your fleet more efficiently in one place.
Specifications
- Capacities - Fuel Tank Capacity: 6.3 gal.
- Dimensions & Weights - Base Machine Weight: 1556 lb.
- Dimensions & Weights - Front Axle Ground Clearance: 7.7 in.
- Dimensions & Weights - Wheelbase: 57.1 in.
- Electrical System - Alternator Capacity: 40 amp
- Electrical System - Battery Cold Cranking Amps: 500 CCA
- Electrical System - Battery Voltage: 12 V
- Electrical System - Electrical System Voltage: 12 V
- Engine - Air Cleaner Type: Dual element with mechanical restriction indicator
- Engine - Aspiration: Natural
- Engine - Bore and Stroke: 3.15 x 3.31 in.
- Engine - Cooling System Type: Water pump
- Engine - Displacement: 1.267 L
- Engine - Displacement: 77 cu in.
- Engine - Emissions Certifications: Final Tier 4
- Engine - Engine Make: Yanmar®
- Engine - Engine Model: 3TNV80F-NCJT
- Engine - Fuel Type: Diesel
- Engine - Number of Cylinders: 3
- Engine - Rated Engine Power: 24 hp
- Engine - Rated Engine Power: 18 kW
- Engine - Rated Engine Power: 24 PS
- Engine - Rated Engine Speed: 3200 rpm
- Front PTO - PTO Speed: 2100
- Hydraulics - Hydraulic System Type: Open center
- Hydraulics - Number of Rear Selective Control Valves (SCVs): Three
- Hydraulics - Pump Rated Output: 6.3 gpm (24 L/min)
- Machine Configuration - Wheel or Track Configuration: Wheel
- Operator Station - ROPS Type: Foldable
- Operator Station - Seat Suspension: Suspension seat
- Rear Hitch - Draft Control Sensing: Position control
- Rear Hitch - Maximum Lift Capacity at 610-mm Behind Hitch Point: 758 lb / 344 kg
- Rear Hitch - Rear Hitch Category (SAE Designation): Limited Category 1
- Rear Hitch - Sensing Type: Position control
- Rear Power Take-Off (PTO) - Brake (For Mid and Rear PTO): Wet disk
- Rear Power Take-Off (PTO) - Engagement Method: Independent
- Rear Power Take-Off (PTO) - PTO Category: Limited Category 1
- Rear Power Take-Off (PTO) - PTO Clutch: Wet disk
- Rear Power Take-Off (PTO) - Rated PTO Power: 18 hp
- Steering & Brakes - Primary Brakes: Wet disc (left-hand pedal)
- Steering & Brakes - Steering Type: Power steering
- Tires - Front Tires Size: R3 Turf: 18x8.50-10; R3 Turf Radial: 18x8.50-10; R4: 18x8.5-10
- Tires - Front Tread Spacing: 36 in.
- Tires - Rear Tires Size: R3 Turf: 26x12‑12; R4: 26x12‑12
- Tires - Rear Tread Spacing: 35 in.
- Transmission - Clutch: Wet disc
- Transmission - Cruise Control: Standard
- Transmission - Transmission Type: Hydrostatic - two range
Features
- Engine - Rated Engine Power: 18 kW
- Engine - Displacement: 1.267 L
- Engine - Displacement: 77 cu in.
- Engine - Rated Engine Power: 24 PS
- Rear Hitch - Rear Hitch Category (SAE Designation): Limited Category 1
- Dimensions & Weights - Base Machine Weight: 1556 lb.
- Engine - Rated Engine Power: 24 hp
- Transmission - Transmission Type: Hydrostatic - two range
- Hydraulics - Pump Rated Output: 6.3 gpm (24 L/min)
- Engine - Engine Make: Yanmar®
- Engine - Engine Model: 3TNV80F-NCJT
