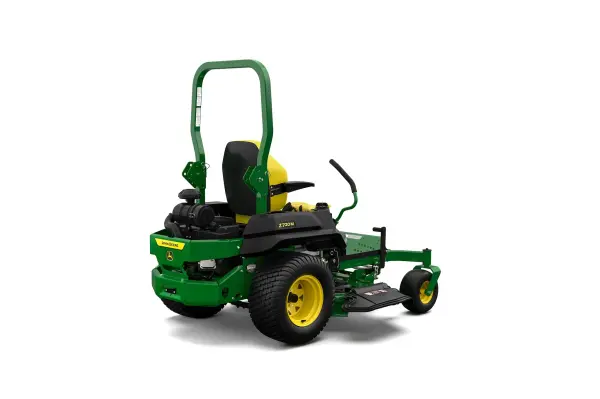

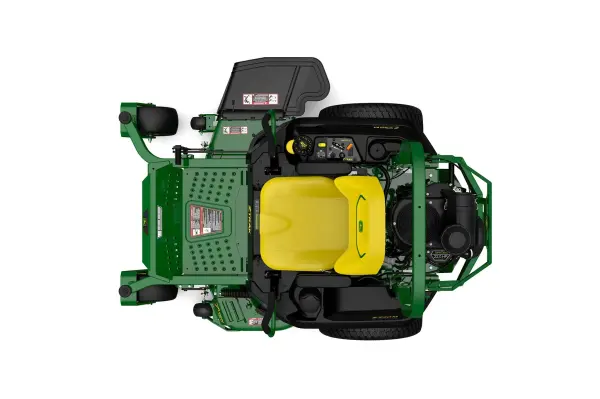

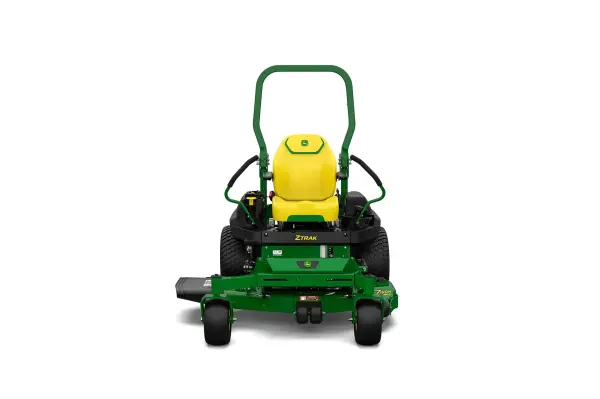

John Deere Z720M ZTrak™ Zero-Turn Mower
Description

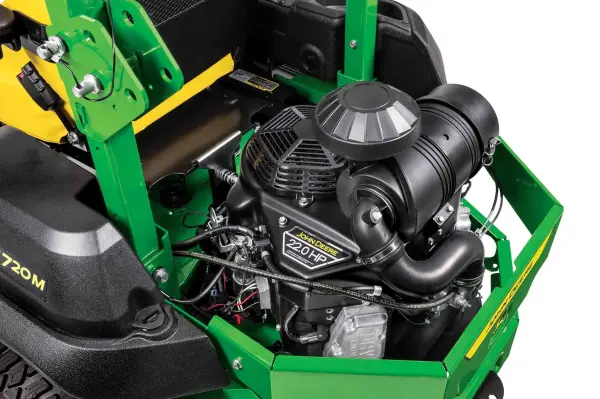

- Powerful 22-hp (16.4 kW) FX Series engine with dual-stage air cleaner
- 48-in. (122 cm) or 54-in. (137 cm) 7Iron™ PRO side-discharge decks with reinforced spindles, chute, and trim edge
- 22.5-in. (57-cm) seat with arm rests, adjustable seat springs, and ComfortGlide™ fore-and-aft suspension
- 4-year or 750-hour Bumper-to-Bumper Warranty
Models

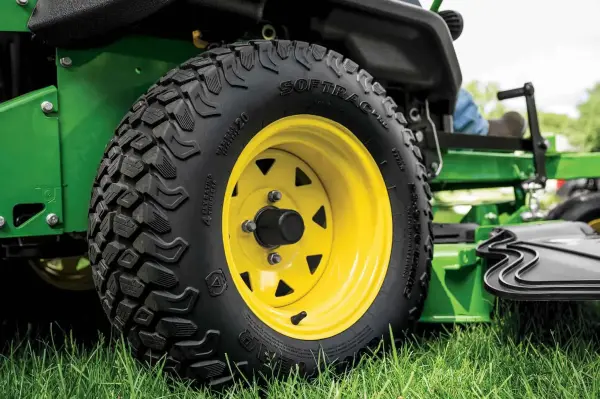

Heavy-duty hydrostatic transmission and tires
The ZT-3200 unitized hydrostatic transmission provides forward mowing speeds up to 9.5 mph (15.3 km/h). The transmission features heavy-duty wheel motors, charge pumps, exceptional cooling, and convenient access to check and fill hydraulic oil. The 23-inch-tall (58 cm) rear tires feature a bold tread design that helps improve traction while minimizing turf damage.

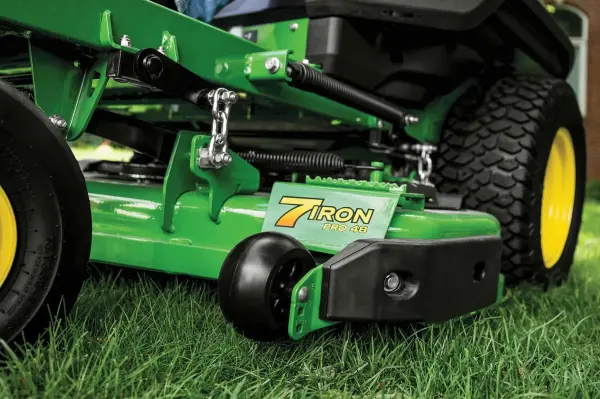

7Iron™ PRO Mower Deck
Each 7Iron™ PRO deck is forged from a single sheet of 7-gauge steel for commercial-grade durability. A smooth underside and 5.5-inch (140 mm) depth helps prevent material buildup while providing excellent airflow for efficient grass processing. Thoughtfully placed anti-scalp wheels help maintain consistent cutting over uneven terrain while making it easier to climb curbs. Includes aircraft-grade cast aluminum spindle housings with reinforced ribbing for durability that stands up to daily use.

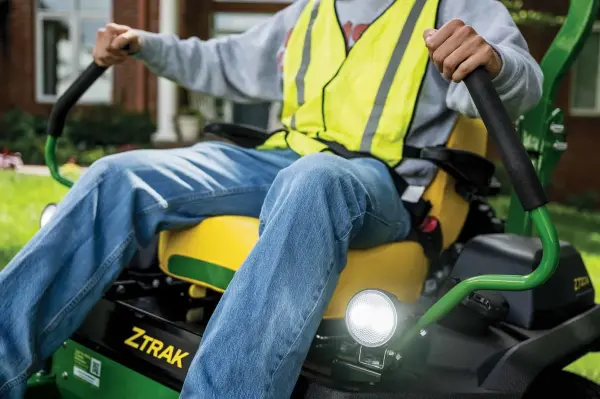

Exceptional operator comfort and control
Find your ideal operating position with an adjustable seat, steering levers, and foot platform. The seat features our ComfortGlide fore-and-aft suspension for exceptional ride comfort on uneven ground. Easy-to-use controls are conveniently located next to the seat, and a digital display helps you keep track of machine hours and system alerts. For convenient stand-go operation, the parking brake is built into the steering levers, so you can simply pull the levers in to start mowing and push them out to park.
Specifications
- Buyer's Notes - Note 1: Flip-up and adjustable foot platform for easy service access
- Buyer's Notes - Warranty: 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
- Chassis - Cup Holder: Yes
- Chassis - Drive Tires: 23X9.5-12 (48-in. deck); 23X10.5-12 (54-in. deck)
- Chassis - Frame: Heavy-duty frame tubing
- Chassis - Front Caster Bearings: Sealed ball bearings
- Chassis - Front Caster Tires: 13x6.5-6
- Chassis - Hour Meter: Yes, with low oil pressure, warning, service maintenance, and operator presence indicators
- Chassis - Primer/Paint: E-coat/powder
- Chassis - Service Interval Decal: Yes
- Chassis - Storage Compartment: Yes
- Dimensions - Height: 71.7 in.
- Dimensions - Height: 182.2 cm
- Dimensions - Overall Length: 204.6 cm
- Dimensions - Overall Length: 80.6 in.
- Dimensions - Weight: 965.0 lb.
- Dimensions - Weight: 438.0 kg
- Dimensions - Wheelbase: 49.9 in.
- Dimensions - Wheelbase: 126.7 cm
- Dimensions - Width With Mower: 173.2 cm
- Dimensions - Width With Mower: 68.2 in.
- Dimensions - Width With Mower (Deflector Raised For Storage): 56.1 in.
- Dimensions - Width With Mower (Deflector Raised For Storage): 142.7 cm
- Dimensions - Width Without Mower: 120.0 cm
- Dimensions - Width Without Mower: 47.4 in.
- Drivetrain - Dual Hydros: Hydro-Gear ZT3200™ with 1.125-in. (28.6-mm) axles
- Engine - Battery Cold Crank Amps : 300.0 CCA
- Engine - Battery Voltage : 12.0 V
- Engine - Choke/Speed Control: Separate control levers
- Engine - Cooling Method: Air
- Engine - Cylinders: V-twin
- Engine - Displacement: 726.0 cc
- Engine - Displacement: 44.2 cu in.
- Engine - Engine Model Number: FX691V
- Engine - Engine Power: 22.0 hp
- Engine - Engine Power: 16.4 kW

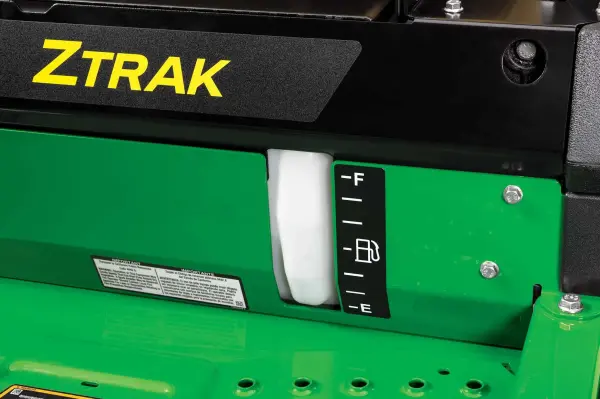

- Engine - Fuel Gauge: Fuel level sight line
- Engine - Fuel Tank Capacity: 8.0 U.S. gal.
- Engine - Fuel Tank Capacity: 30.2 L
- Engine - Lubrication: 2.2 U.S. qt
- Engine - Lubrication: 2.1 L
- Engine - Lubrication: Full pressure with replaceable filter
- Engine - Type: Overhead valve
- Lift System - Cut Height Increments: 0.64 cm
- Lift System - Cut Height Increments: 0.25 in.
- Lift System - Mower Cut Height - Maximum: 12.7 cm
- Lift System - Mower Cut Height - Maximum: 5.0 in.
- Lift System - Mower Cut Height - Minimum: 1.5 in.
- Lift System - Mower Cut Height - Minimum: 3.8 cm
- Lift System - Preset Cut Height: Yes
- Lift System - Type: Spring assisted foot lift
- Mower Deck - Cutting Width: 54 in.
- Mower Deck - Cutting Width: 137 cm
- Mower Deck - Mower Deck Material: 4.6 mm
- Mower Deck - Mower Deck Material: 7.0 gauge
- Mower Deck - Mower Deck Material: 0.179 in.
- Mower Deck - Mower Drive System: V-belt
- Mower Deck - Type: 7Iron™ PRO side discharge
- Operation - Operator Presence System: Yes
- Operation - Park Brake Interlock: Yes
- Operation - Rollover Protective Structure (ROPS): Yes
- Operation - Slope 0perating Limit: 15 degrees (material collection systems, weather enclosures, or other attachments increase the risk of a rollover) degree (angle)
- Optional Attachments - Light Kit: Optional LED work and beacon lights
- Optional Attachments - Material Collection System: 229.0 L
- Optional Attachments - Material Collection System: Power Flow™ rear bagger
- Optional Attachments - Material Collection System: 6.5 bu
- Optional Attachments - Mulching System: Optional mulch kit
- Optional Attachments - Rubber Floor Mat: Optional
- Power Take-Off (PTO) - Drive: V-belt
- Power Take-Off (PTO) - Type: 125.0 lb-ft
- Power Take-Off (PTO) - Type: Electric
- Power Take-Off (PTO) - Type: 169.0 Nm
- Seat - Fore-Aft Adjustment: 4.0 in.
- Seat - Fore-Aft Adjustment: 10.2 cm
- Seat - Seat Back Height: 22.5 in.
- Seat - Seat Back Height: 57.0 cm
- Seat - Seat Suspension: Two four-position springs with ComfortGlide™ fore-and-aft suspension
- Travel Speed - Control Adjustment: 2-height/18 positions
- Travel Speed - Forward Speed: 9.5 mph
- Travel Speed - Forward Speed: 15.3 km/h
- Travel Speed - Reverse Speed: 6.4 km/h
- Travel Speed - Reverse Speed: 4.5 mph
- Travel Speed - Speed And Direction Control: Twin premium levers
Features
- Travel Speed - Forward Speed: 9.5 mph
- Mower Deck - Cutting Width: 54 in.
- Chassis - Front Caster Tires: 13x6.5-6
- Optional Attachments - Mulching System: Optional mulch kit
- Mower Deck - Cutting Width: 137 cm
- Travel Speed - Forward Speed: 15.3 km/h
- Engine - Engine Power: 22.0 hp
- Seat - Seat Back Height: 22.5 in.
- Engine - Engine Power: 16.4 kW
- Seat - Seat Back Height: 57.0 cm
- Buyer's Notes - Warranty: 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
- Engine - Engine Model Number: FX691V
- Chassis - Drive Tires: 23X9.5-12 (48-in. deck); 23X10.5-12 (54-in. deck)
Copy Set
Heavy-duty hydrostatic transmission and tires
The ZT-3200 unitized hydrostatic transmission provides forward mowing speeds up to 9.5 mph (15.3 km/h). The transmission features heavy-duty wheel motors, charge pumps, exceptional cooling, and convenient access to check and fill hydraulic oil. The 23-inch-tall (58 cm) rear tires feature a bold tread design that helps improve traction while minimizing turf damage.
7Iron™ PRO Mower Deck
Each 7Iron™ PRO deck is forged from a single sheet of 7-gauge steel for commercial-grade durability. A smooth underside and 5.5-inch (140 mm) depth helps prevent material buildup while providing excellent airflow for efficient grass processing. Thoughtfully placed anti-scalp wheels help maintain consistent cutting over uneven terrain while making it easier to climb curbs. Includes aircraft-grade cast aluminum spindle housings with reinforced ribbing for durability that stands up to daily use.
Exceptional operator comfort and control
Find your ideal operating position with an adjustable seat, steering levers, and foot platform. The seat features our ComfortGlide fore-and-aft suspension for exceptional ride comfort on uneven ground. Easy-to-use controls are conveniently located next to the seat, and a digital display helps you keep track of machine hours and system alerts. For convenient stand-go operation, the parking brake is built into the steering levers, so you can simply pull the levers in to start mowing and push them out to park.
