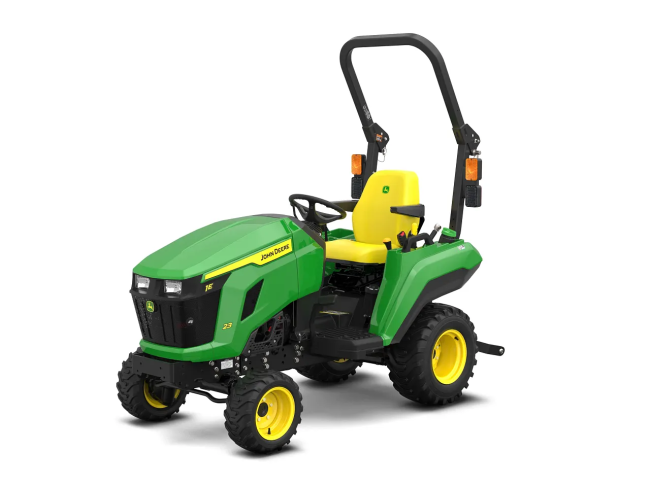

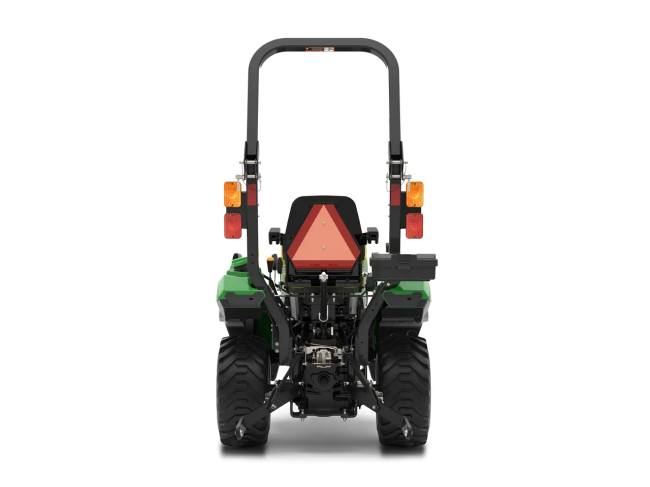

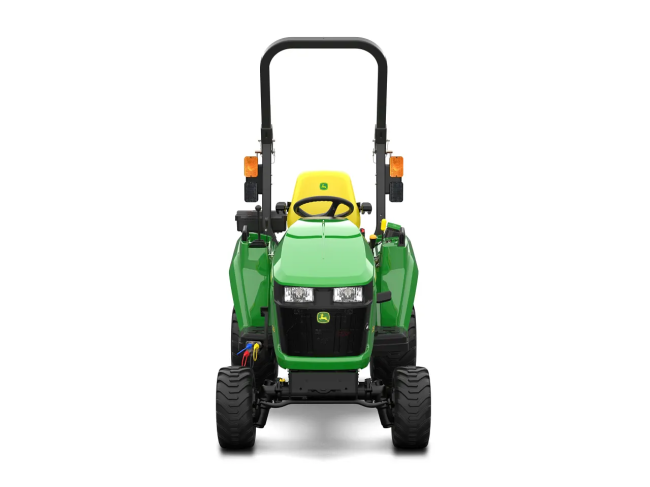

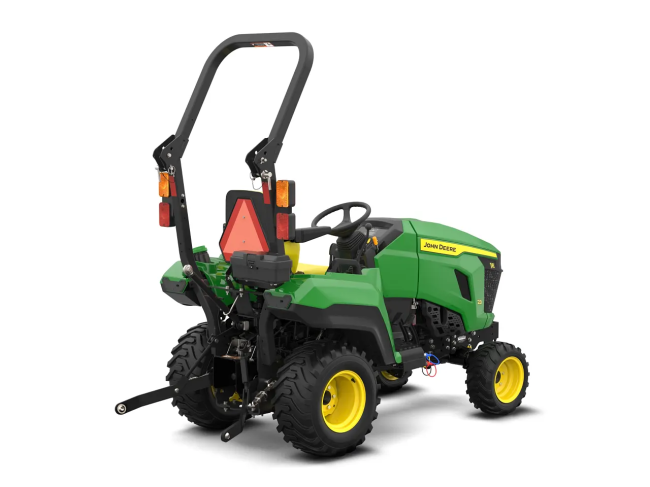

John Deere 1E 23 Sub-Compact Tractor

1-Family Compact Tractors

Your Preferred Location

One-Piece Hood Design for Easier Maintenance
Hydro Transmission With Twin Touch™ Pedals for Ease of Use
AutoConnect™ Mid-Mower Deck can be Installed or Removed Quickly Without Leaving the Seat
High‑Back Suspension Seat With Marine‑Grade Vinyl and Armrests for Lasting Comfort

One-Piece Hood Design for Easier Maintenance
Hydro Transmission With Twin Touch™ Pedals for Ease of Use
AutoConnect™ Mid-Mower Deck can be Installed or Removed Quickly Without Leaving the Seat
High‑Back Suspension Seat With Marine‑Grade Vinyl and Armrests for Lasting Comfort

Features

Engine - Displacement: 61 cu in.
Engine - Rated Engine Power: 22 hp
Engine - Engine Model: 3TNM74F-NCJT
Engine - Rated Engine Power: 22 PS
Engine - Rated Engine Power: 16 kW

Specifications

Capacities - Fuel Tank Capacity:	5.6 gal.
Capacities - Fuel Tank Capacity:	21.2 L
Electrical System - Alternator Capacity:	40 amp
Engine - Air Cleaner Type:	Dual element with mechanical restriction indicator
Engine - Aspiration:	Natural
Engine - Cooling System Type:	Water pump
Engine - Displacement:	61 cu in.
Engine - Emissions Certifications:	Final Tier 4
Engine - Engine Model:	3TNM74F-NCJT
Engine - Fuel Type:	Diesel
Engine - Number of Cylinders:	3
Engine - Rated Engine Power:	22 PS
Engine - Rated Engine Power:	16 kW
Engine - Rated Engine Power:	22 hp
Engine - Rated Engine Speed:	3200 rpm
Front PTO - PTO Speed:	3200
Hydraulics - Hydraulic System Type:	Open center
Machine Configuration - Wheel or Track Configuration:	Wheel
Rear Hitch - Draft Control Sensing:	Select control
Rear Hitch - Maximum Lift Capacity at 610-mm Behind Hitch Point:	758
Rear Power Take-Off (PTO) - Brake (For Mid and Rear PTO):	Wet disk
Rear Power Take-Off (PTO) - Engagement Method:	Independent
Tires - Front Tires Size:	R3 Turf: 18x8.50-10; R4: 18x8.5-10
Transmission - Clutch:	Wet disc
Transmission - Cruise Control:	No

Convenient Twin Touch™ Foot Controls

Studio close-up of a 1 series tractor's Twin Touch™ foot controls

Twin Touch™ foot controls let operators change speed and direction with a touch of the toe, making loader and mower work faster and easier. Benefits include infinite ground speeds, no clutching for quick reversals, strong startup torque, and reduced drivetrain shock.

Equipment Mobile and Smart Connector

Black smartphone with the Live Equipment Dashboard pulled up in Equipment Mobile app

Equipment Mobile helps you set up, operate, and maintain your tractors from one app. With a John Deere Smart Connector, you can see live tractor data, get DTC alerts, track maintenance, scan the PIN for manuals and parts, and manage your fleet more efficiently in one place.

More Time Working, Less Time Switching Implements

A green tractor with an enclosed cab pulls a box blade attachment along a gravel path beside a tree, with grassy fields and a flat rural landscape under a clear sky

John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.

Features
Features
- Engine - Displacement: 61 cu in.
- Engine - Rated Engine Power: 22 hp
- Engine - Engine Model: 3TNM74F-NCJT
- Engine - Rated Engine Power: 22 PS
- Engine - Rated Engine Power: 16 kW

Specifications

Capacities - Fuel Tank Capacity:	5.6 gal.
Capacities - Fuel Tank Capacity:	21.2 L
Electrical System - Alternator Capacity:	40 amp
Engine - Air Cleaner Type:	Dual element with mechanical restriction indicator
Engine - Aspiration:	Natural
Engine - Cooling System Type:	Water pump
Engine - Displacement:	61 cu in.
Engine - Emissions Certifications:	Final Tier 4
Engine - Engine Model:	3TNM74F-NCJT
Engine - Fuel Type:	Diesel
Engine - Number of Cylinders:	3
Engine - Rated Engine Power:	22 PS
Engine - Rated Engine Power:	16 kW
Engine - Rated Engine Power:	22 hp
Engine - Rated Engine Speed:	3200 rpm
Front PTO - PTO Speed:	3200
Hydraulics - Hydraulic System Type:	Open center
Machine Configuration - Wheel or Track Configuration:	Wheel
Rear Hitch - Draft Control Sensing:	Select control
Rear Hitch - Maximum Lift Capacity at 610-mm Behind Hitch Point:	758
Rear Power Take-Off (PTO) - Brake (For Mid and Rear PTO):	Wet disk
Rear Power Take-Off (PTO) - Engagement Method:	Independent
Tires - Front Tires Size:	R3 Turf: 18x8.50-10; R4: 18x8.5-10
Transmission - Clutch:	Wet disc
Transmission - Cruise Control:	No

Details

Convenient Twin Touch™ Foot Controls

Twin Touch™ foot controls let operators change speed and direction with a touch of the toe, making loader and mower work faster and easier. Benefits include infinite ground speeds, no clutching for quick reversals, strong startup torque, and reduced drivetrain shock.

Equipment Mobile and Smart Connector

Equipment Mobile helps you set up, operate, and maintain your tractors from one app. With a John Deere Smart Connector, you can see live tractor data, get DTC alerts, track maintenance, scan the PIN for manuals and parts, and manage your fleet more efficiently in one place.

More Time Working, Less Time Switching Implements

John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.
