John Deere 1M 25 Sub-Compact Tractor

1-Family Compact Tractors

Your Preferred Location

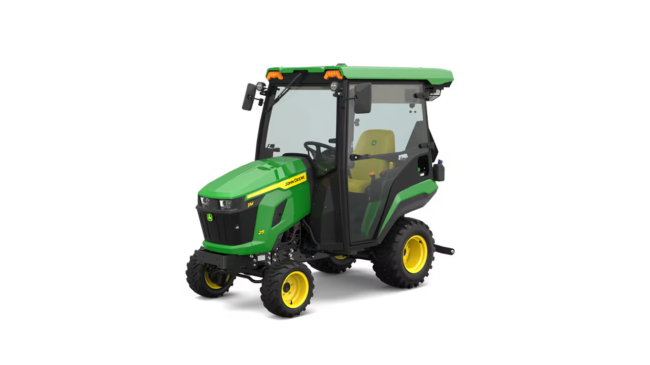

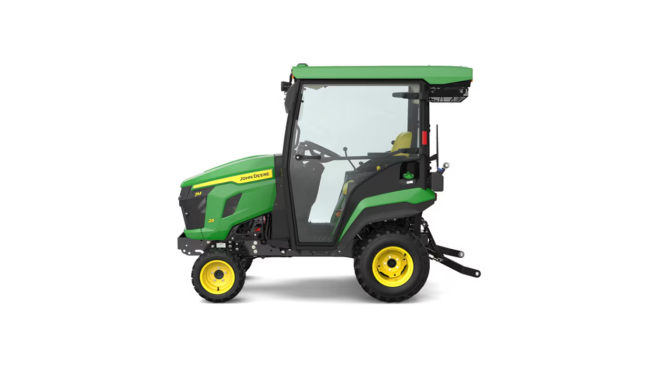

Optional Factory-Installed All-Weather HVAC Cab
One-Piece Hood Design for Easier Maintenance
Ergonomic Controls, Tilt Steering, and Marine-Grade Vinyl Seat With Deluxe Suspension System for Enhanced Comfort
12-V Outlet, USB Port, Tilt Steering Wheel, and Toolbox

Optional Factory-Installed All-Weather HVAC Cab
One-Piece Hood Design for Easier Maintenance
Ergonomic Controls, Tilt Steering, and Marine-Grade Vinyl Seat With Deluxe Suspension System for Enhanced Comfort
12-V Outlet, USB Port, Tilt Steering Wheel, and Toolbox

Features

Engine - Engine Model: 3TNV80F-NCJT
Engine - Engine Make: Yanmar®
Engine - Rated Engine Power: 18 kW
Rear Hitch - Rear Hitch Category (SAE Designation): Limited Category 1
Dimensions & Weights - Base Machine Weight: 1556 lb.
Engine - Displacement: 1.267 L
Engine - Rated Engine Power: 24 hp
Engine - Displacement: 77 cu in.
Transmission - Transmission Type: Hydrostatic - two range
Hydraulics - Pump Rated Output: 6.3 gpm (24 L/min)
Engine - Rated Engine Power: 24 PS

Specifications

Capacities - Fuel Tank Capacity:	6.3 gal.
Dimensions & Weights - Base Machine Weight:	1556 lb.
Dimensions & Weights - Front Axle Ground Clearance:	7.7 in.
Dimensions & Weights - Wheelbase:	57.1 in.
Electrical System - Alternator Capacity:	40 amp
Electrical System - Battery Cold Cranking Amps:	500 CCA
Electrical System - Battery Voltage:	12 V
Electrical System - Electrical System Voltage:	12 V
Engine - Air Cleaner Type:	Dual element with mechanical restriction indicator
Engine - Aspiration:	Natural
Engine - Bore and Stroke:	3.15 x 3.31 in.
Engine - Cooling System Type:	Water pump
Engine - Displacement:	1.267 L
Engine - Displacement:	77 cu in.
Engine - Emissions Certifications:	Final Tier 4
Engine - Engine Make:	Yanmar®
Engine - Engine Model:	3TNV80F-NCJT
Engine - Fuel Type:	Diesel
Engine - Number of Cylinders:	3
Engine - Rated Engine Power:	24 hp
Engine - Rated Engine Power:	18 kW
Engine - Rated Engine Power:	24 PS
Engine - Rated Engine Speed:	3200 rpm
Front PTO - PTO Speed:	2100
Hydraulics - Hydraulic System Type:	Open center
Hydraulics - Number of Rear Selective Control Valves (SCVs):	Three
Hydraulics - Pump Rated Output:	6.3 gpm (24 L/min)
Machine Configuration - Wheel or Track Configuration:	Wheel
Operator Station - ROPS Type:	Foldable
Operator Station - Seat Suspension:	Suspension seat
Rear Hitch - Draft Control Sensing:	Position control
Rear Hitch - Maximum Lift Capacity at 610-mm Behind Hitch Point:	758 lb / 344 kg
Rear Hitch - Rear Hitch Category (SAE Designation):	Limited Category 1
Rear Hitch - Sensing Type:	Position control
Rear Power Take-Off (PTO) - Brake (For Mid and Rear PTO):	Wet disk
Rear Power Take-Off (PTO) - Engagement Method:	Independent
Rear Power Take-Off (PTO) - PTO Category:	Limited Category 1
Rear Power Take-Off (PTO) - PTO Clutch:	Wet disk
Rear Power Take-Off (PTO) - Rated PTO Power:	18 hp
Steering & Brakes - Primary Brakes:	Wet disc (left-hand pedal)
Steering & Brakes - Steering Type:	Power steering
Tires - Front Tires Size:	R3 Turf: 18x8.50-10; R3 Turf Radial: 18x8.50-10; R4: 18x8.5-10
Tires - Front Tread Spacing:	36 in.
Tires - Rear Tires Size:	R3 Turf: 26x12‑12; R4: 26x12‑12
Tires - Rear Tread Spacing:	35 in.
Transmission - Clutch:	Wet disc
Transmission - Cruise Control:	Standard
Transmission - Transmission Type:	Hydrostatic - two range

More Time Working, Less Time Switching Implements

A green tractor with an enclosed cab pulls a box blade attachment along a gravel path beside a tree, with grassy fields and a flat rural landscape under a clear sky

John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.

Convenient Twin Touch™ Foot Controls

Studio close-up of a 1 series tractor's Twin Touch™ foot controls

Twin Touch™ foot controls let operators change speed and direction with a touch of the toe, making loader and mower work faster and easier. Benefits include infinite ground speeds, no clutching for quick reversals, strong startup torque, and reduced drivetrain shock.

Equipment Mobile and Smart Connector

Black smartphone with the Live Equipment Dashboard pulled up in Equipment Mobile app

Equipment Mobile helps you set up, operate, and maintain your tractors from one app. With a John Deere Smart Connector, you can see live tractor data, get DTC alerts, track maintenance, scan the PIN for manuals and parts, and manage your fleet more efficiently in one place.

Features
Features
- Engine - Engine Model: 3TNV80F-NCJT
- Engine - Engine Make: Yanmar®
- Engine - Rated Engine Power: 18 kW
- Rear Hitch - Rear Hitch Category (SAE Designation): Limited Category 1
- Dimensions & Weights - Base Machine Weight: 1556 lb.
- Engine - Displacement: 1.267 L
- Engine - Rated Engine Power: 24 hp
- Engine - Displacement: 77 cu in.
- Transmission - Transmission Type: Hydrostatic - two range
- Hydraulics - Pump Rated Output: 6.3 gpm (24 L/min)
- Engine - Rated Engine Power: 24 PS

Specifications

Capacities - Fuel Tank Capacity:	6.3 gal.
Dimensions & Weights - Base Machine Weight:	1556 lb.
Dimensions & Weights - Front Axle Ground Clearance:	7.7 in.
Dimensions & Weights - Wheelbase:	57.1 in.
Electrical System - Alternator Capacity:	40 amp
Electrical System - Battery Cold Cranking Amps:	500 CCA
Electrical System - Battery Voltage:	12 V
Electrical System - Electrical System Voltage:	12 V
Engine - Air Cleaner Type:	Dual element with mechanical restriction indicator
Engine - Aspiration:	Natural
Engine - Bore and Stroke:	3.15 x 3.31 in.
Engine - Cooling System Type:	Water pump
Engine - Displacement:	1.267 L
Engine - Displacement:	77 cu in.
Engine - Emissions Certifications:	Final Tier 4
Engine - Engine Make:	Yanmar®
Engine - Engine Model:	3TNV80F-NCJT
Engine - Fuel Type:	Diesel
Engine - Number of Cylinders:	3
Engine - Rated Engine Power:	24 hp
Engine - Rated Engine Power:	18 kW
Engine - Rated Engine Power:	24 PS
Engine - Rated Engine Speed:	3200 rpm
Front PTO - PTO Speed:	2100
Hydraulics - Hydraulic System Type:	Open center
Hydraulics - Number of Rear Selective Control Valves (SCVs):	Three
Hydraulics - Pump Rated Output:	6.3 gpm (24 L/min)
Machine Configuration - Wheel or Track Configuration:	Wheel
Operator Station - ROPS Type:	Foldable
Operator Station - Seat Suspension:	Suspension seat
Rear Hitch - Draft Control Sensing:	Position control
Rear Hitch - Maximum Lift Capacity at 610-mm Behind Hitch Point:	758 lb / 344 kg
Rear Hitch - Rear Hitch Category (SAE Designation):	Limited Category 1
Rear Hitch - Sensing Type:	Position control
Rear Power Take-Off (PTO) - Brake (For Mid and Rear PTO):	Wet disk
Rear Power Take-Off (PTO) - Engagement Method:	Independent
Rear Power Take-Off (PTO) - PTO Category:	Limited Category 1
Rear Power Take-Off (PTO) - PTO Clutch:	Wet disk
Rear Power Take-Off (PTO) - Rated PTO Power:	18 hp
Steering & Brakes - Primary Brakes:	Wet disc (left-hand pedal)
Steering & Brakes - Steering Type:	Power steering
Tires - Front Tires Size:	R3 Turf: 18x8.50-10; R3 Turf Radial: 18x8.50-10; R4: 18x8.5-10
Tires - Front Tread Spacing:	36 in.
Tires - Rear Tires Size:	R3 Turf: 26x12‑12; R4: 26x12‑12
Tires - Rear Tread Spacing:	35 in.
Transmission - Clutch:	Wet disc
Transmission - Cruise Control:	Standard
Transmission - Transmission Type:	Hydrostatic - two range

Details

More Time Working, Less Time Switching Implements

John Deere Compact Tractors are built for fast, tool-free implement changes, enabling users to switch tasks efficiently. With Quick Connect Solutions like the AutoConnect™ Deck System, Quik-Park™ Loader, iMatch™ Quick Hitch, and Quik-Knect™ PTO connector, operators can attach or detach implements in under a minute—often without leaving the seat.

Convenient Twin Touch™ Foot Controls

Twin Touch™ foot controls let operators change speed and direction with a touch of the toe, making loader and mower work faster and easier. Benefits include infinite ground speeds, no clutching for quick reversals, strong startup torque, and reduced drivetrain shock.

Equipment Mobile and Smart Connector

Equipment Mobile helps you set up, operate, and maintain your tractors from one app. With a John Deere Smart Connector, you can see live tractor data, get DTC alerts, track maintenance, scan the PIN for manuals and parts, and manage your fleet more efficiently in one place.
